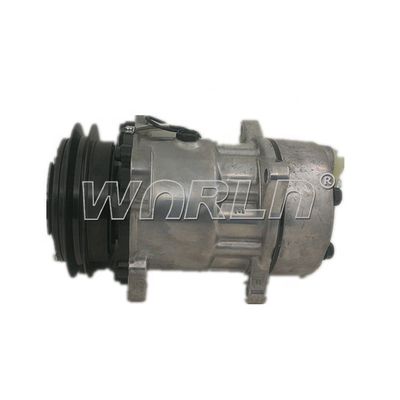

1A 12V 132MM Auto Car Air Conditioner AC Compressor SD7H15 AC Compressor For Iveco WXIV007 132MM

20.0 Pieces
MOQ
1A 12V 132MM Auto Car Air Conditioner AC Compressor SD7H15 AC Compressor For Iveco WXIV007 132MM
Features Gallery Product Description Request A Quote
Features
Specifications
OE NO.: NA
Size: 132MM
Type: Auto AC Parts, Truck AC Compressor
Warranty: 12 Month
Car Model: For Iveco Truck
Pulley Diameter: 132mm
Voltage: 12V
Compressor Model: SD7H15
Pulley Grove Number: 1A
Weixing Number: WXIV007
Basic Infomation
Model Number: For Iveco Truck, SD7H15
Payment & Shipping Terms
Packaging Details: Neutral packing and our own brand packing or customized packing according to your requirement.
Supply Ability: 5000 Piece/Pieces per Month
Product Description
1A 12V 132MM Car Air Conditioner AC Compressor SD7H15 Auto AC Compressor For Iveco WXIV007
Product Description
Weixing Number
WXIV007
Car Make
For Iveco Truck
Compressor Model
SD7H15
Pulley Groove Number
1A
Pulley Diameter
132MM
Voltage
12V
Year Model
N/A
OEM
N/A
Refrigerant
R134A
Theory
Principles of Air Conditioning
(Expansion Valve System)
1)High pressure side
Low pressure R134a vapor entering the compressor is compressed to become high pressure/temperature R134a vapor. This is then
circulated along with lubricant oil to the condenser. As the high pressure/temperature vapor travels through the condenser, heat
is released to the cooler ambient air passing over the condenser tubes condensing the vapor into a liquid. This high
pressure/temperature liquid then travels through the filter drier onto the expansion valve where a small variable orifice provides
a restriction against which compressor pushes.
2) pressure side
Suction from the compressor pulls the high pressure/temperature liquid R134a through small variable orifice of the TX valve and
into the low-pressure side of the A/C system.
The R134a is now under low pressure/temperature vapor where heat from the cabin being blown over the evaporator coil surface is
absorbed into the colder low pressure refrigerant The R134a is then pulled through the evaporator and into the
compressor.
The A/C cycle begins again as the R134a vapor is compressed and discharged under pressure.
3)Heat transfer
R134a in the LOW-PRESSURE side is COLD and can absorb large quantities of heat from the air moving over the evaporator.
R134a in HIGH-PRESSURE side is HOT and the cooler ambient air moving over the condenser can absorb the heat from it.
Summary
- When the R134a pressure is low, the R134a temperature is low.
- When the R134a pressure is high, the R134a temperature is high.
Details Images
Company Profile
Packing & Delivery
We also accept custom packing by your own logo. Any idea, please feel free to contact with sales003@gzweixing.com
We also have many compressor for other models, please check following. Thank you.
